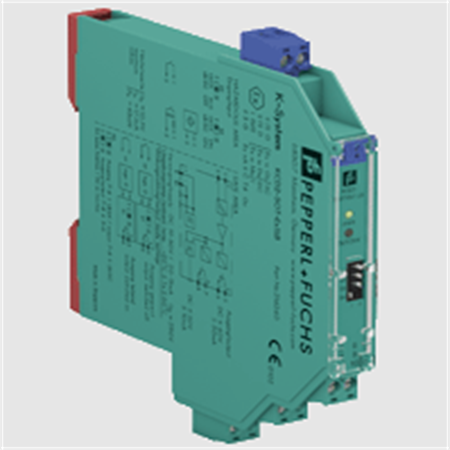

Pepperl+Fuchs KFD2-SOT3-Ex2.IO-Y1 Switch Amplifier

Pepperl+Fuchs KFD2-SOT3-Ex2.IO-Y1 Switch Amplifier

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

General specifications

Signal typeDigital Input

Functional safety related parameters

Safety Integrity Level (SIL)SIL 2

Supply

ConnectionPower Rail or terminals 14+, 15-

Rated voltage19 ... 30 V DC

Ripple≤ 10 %

Rated current30 ... 20 mA

Power dissipation≤ 1.1 W including maximum power dissipation in the output

Input

Connection sidefield side

Connectionterminals 1+, 2+, 3-; 4+, 5+, 6-

Rated valuesacc. to EN 60947-5-6 (NAMUR), see manual for electrical data

Open circuit voltage/short-circuit currentapprox. 10 V DC / approx. 8 mA

Switching point/switching hysteresis1.2 ... 2.1 mA / approx. 0.2 mA

Line fault detectionbreakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA

Pulse/Pause ratiomin. 100 µs / min. 100 µs

Output

Connection sidecontrol side

Connectionoutput I: terminals 7, 8 ; output II: terminals 10, 11

Rated voltage30 V DC

Rated current2 mA , short-circuit protected

Response time≤ 200 µs

Signal level1-signal: switching voltage - 0.85 V max. at 2 mA switching current

0-signal: switched off (off-state current ≤ 10 µA)

Output Isignal ; Transistor , TTL compatible

Output IIsignal ; Transistor , TTL compatible

Collective error messagePower Rail

Transfer characteristics

Switching frequency≤ 5 kHz

Galvanic isolation

Input/Outputreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Input/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Output/power supplybasic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff

Output/Outputbasic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff

Indicators/settings

Display elementsLEDs

Control elementsDIP switch

Configurationvia DIP switches

Labelingspace for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EUEN 61326-1:2013 (industrial locations)

Conformity

Electromagnetic compatibilityNE 21:2012 , EN 61326-3-2:2008

Degree of protectionIEC 60529:2001

InputEN 60947-5-6:2000

Ambient conditions

Ambient temperature-20 ... 60 °C (-4 ... 140 °F)

Mechanical specifications

Degree of protectionIP20

Connectionscrew terminals

Massapprox. 150 g

Dimensions20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2

Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001

Pepperl+Fuchs KFD2-SOT3-Ex2.IO-Y1 Switch Amplifier

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761
