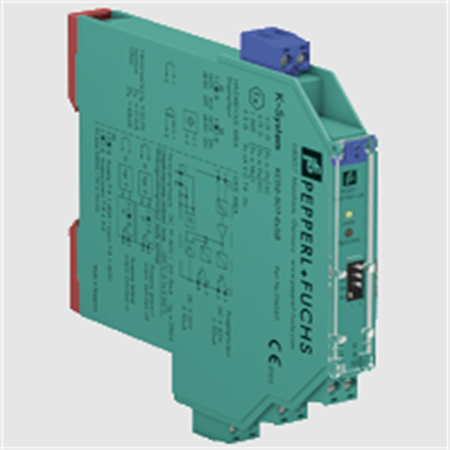

Pepperl+Fuchs KCD2-SON-Ex1 Switch Amplifier

Pepperl+Fuchs KCD2-SON-Ex1 Switch Amplifier

jeff@hkxytech.com   jeff@whxyauto.com   +86-15072331761

General specifications

Signal typeDigital Input

Functional safety related parameters

Safety Integrity Level (SIL)SIL 2

Systematic capability (SC)SC 3

Supply

ConnectionPower Rail or terminals 9+, 10-

Rated voltage19 ... 30 V DC

Ripple≤ 10 %

Rated current18 ... 14 mA

Power dissipation≤ 500 mW

Input

Connection sidefield side

Connectionterminals 1+, 2-

Rated valuesacc. to EN 60947-5-6 (NAMUR)

Open circuit voltage/short-circuit currentapprox. 10 V DC / approx. 8 mA

Switching point/switching hysteresis1.2 ... 2.1 mA / approx. 0.2 mA

Line fault detectionbreakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA

Pulse/Pause ratiomin. 100 µs / min. 100 µs

Output

Connection sidecontrol side

Connectionoutput I: terminals 5, 6 ; output II: terminals 7, 8

Rated voltagetyp. 8 V max. 20 V DC

Response time≤ 200 µs

Output I, IIsignal or error message, passive transistor output (resistive)

0-signal: 14 kΩ ± 10 %

1-signal: 1.8 kΩ ± 10 %

fault: > 100 kΩ

Collective error messagePower Rail

Transfer characteristics

Switching frequency≤ 5 kHz

Galvanic isolation

Input/Outputreinforced insulation acc. to EN 50178, rated insulation voltage 300 Veff

Input/power supplyreinforced insulation acc. to EN 50178, rated insulation voltage 300 Veff

Output/power supplybasic insulation according to EN 50178, rated insulation voltage 50 Veff

Output/Outputbasic insulation according to EN 50178, rated insulation voltage 50 Veff

Indicators/settings

Display elementsLEDs

Control elementsDIP switch

Configurationvia DIP switches

Labelingspace for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EUEN 61326-1:2013 (industrial locations)

Conformity

Electromagnetic compatibilityNE 21:2011 , EN 61326-3-2:2008

Degree of protectionIEC 60529:2001

Protection against electrical shockIEC 61010-1:2010

InputEN 60947-5-6:2000

Ambient conditions

Ambient temperature-20 ... 60 °C (-4 ... 140 °F)

extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions

Mechanical specifications

Degree of protectionIP20

Connectionscrew terminals

Massapprox. 100 g

Dimensions12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) (W x H x D) , housing type A2

Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001
