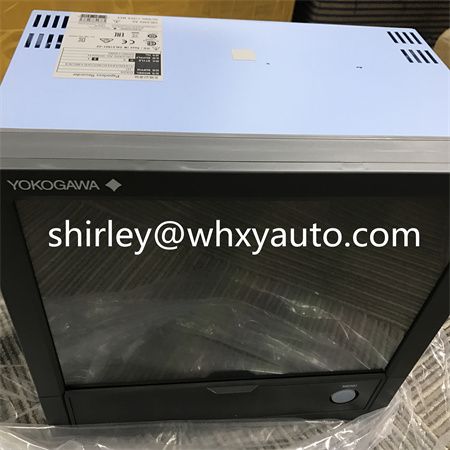

Hot Sale YOKOGAWA GX10 Touch Screen Paperless Recorder

Hot Sale YOKOGAWA GX10 Touch Screen Paperless Recorder

Shirley@whxyauto.com +86-15072331761

Description

GX10/GX20 Paperless Recorder  (Panel mount type)

The GX10/GX20 are paperless recorders that display real-time measured data on a touch screen and save

data on an external storage medium (SD card).

Yokogawa paperless recorder GX10/GX20

SMARTDAC+ GX10/GX20 is a paperless recorder that provides intuitive operation through a touch screen. Its modular architecture supports a wide array of input/output modules, with even more modules available soon.

Smart User Interface

Variety of display function

Standard display screens clearly indicate channel data with units and tags, plus alarm log, message log, and other event log information.

Touch screen for intuitive operation

The new touch screen provides swipe, pinch in/out, and click and drag controls for fast navigation of common display mode functions.

Supports freehand messages

Operators can write a free hand text message directly on the touch screen with a pen stylus or fingure.

Hot Sale YOKOGAWA GX10 Touch Screen Paperless Recorder

Shirley@whxyauto.com +86-15072331761

Smart Architecture

Add I/O modules when you need more channels

The fully modular I/O design allows you to build the system with the channels they need today, and expand the unit’s capability any time in the future by purchasing and installing additional modules.

Wide-ranging input/outpu specifications

The 10 channel universal input module measures DC volts, thermocouple, RTD and contact input signals. A 16 channel digital input module and a relya output module are also avaiable.

Multichannl I/O

GX10 and GX20 support up to 30 channels and 100 channels of input respectively.

Hot Sale YOKOGAWA GX10 Touch Screen Paperless Recorder

Shirley@whxyauto.com +86-15072331761

Smart Functionality

Direct output to printers

You can print out reports and snapshots directly from the GX without going throught a PC.

Convenient report creation function

Reports can be created automatically using a spreadsheet template created in Excel. You can also output to a PDF file.

Browser-based real time monitoring

A web browser can be used to fully access the GX using two operating modes- Data and Configuration.
